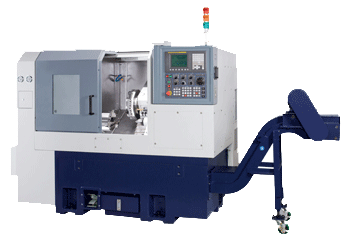

Ecoca SL-8


X Travel : 185 mm
Z Travel : 530 mm
Spindle Taper : 1/20
Spindle Speed : 4800 rpm
Spindle Motor : 7.5/11 KW
Guideways : Linear Guideways

Download PDF Ask A Quote


Awea Af-1000



SL Series

ITEM SL-8 SL-8P
SWING OVER BED
420 mm 420 mm
OVER CROSS SLIDE
350 mm 350 mm
MAX. TURNING DIA
320 mm 320 mm
MAX. WORK LENGTH
500 mm 500 mm
DRAW TUBE DIA
52 mm 52 mm
CHUCK SIZE
8" 8"
SPINDLE DRIVE MOTOR (cont./30min.)
7.5/11 KW 11/15 KW
SPINDLE SPEED RANGE
4800 rpm 4800 rpm
SPINDLE NOSE
A2-6 ASA A2-6 ASA
SPINDLE BORE
62 mm 62 mm
FRONT BEARING DIA
100 mm 100 mm
SPINDLE TAPER
1/20 1/20
X AXIS TRAVEL

185 mm

185 mm
Z AXIS TRAVEL
530 mm 530 mm
X AXIS MOTOR
1.2 KW 1.8 KW
Z AXIS MOTOR

1.2 KW

1.8 KW

X AXIS RAPID TRAVERSE
24 m/min 30 m/min
Z AXIS RAPID TRAVERSE

24 m/min

30 m/min
GUIDEWAYS
LINEAR GUIDEWAYS LINEAR GUIDEWAYS
TURRET MODEL
HYDRAULIC HYDRAULIC
NO. OF TOOL STATIONS
12 10
SIZE OF EXTERNAL TURNING TOOL
20 mm 25 mm
BORING BAR DIA
32 mm 40 mm
QUILL DIA
58 mm 58 mm
QUILL TRAVEL
88 mm 88 mm
TAILSTOCK TRAVEL
410 mm 410 mm
QUILL TAPER
MT#4 MT#4
POWER CONSUMPTION
21 KVA 30 KVA
COOLANT CAPACITY
100 Liter 100 Liter
COOLANT FLOW
20 L/min 20 L/min
TOTAL HEIGHT
1580 mm 1580 mm
FLOOR SPACE

2550 L

1550 W

2550 L

1550 W
NET WEIGHT
3350 kg 3380 kg
Tags: Horizontal 2 axis 8 inches 500-1500mm
