MT-312


X Travel :225 mm
Z Travel :500/750/1000 mm
Spindle Speed : 3200 rpm
Spindle Motor : 15/18.5 KW (18.5/22KW opt.)
Guideways : Hard Rail

Download PDF Ask A Quote


Ecoca MT-312


MT Series

ITEM MT-308MCS MT-310/310MC MT-312/312MC
SWING OVER BED
600 mm 600 mm 600 mm
OVER CROSS SLIDE
400 mm 400 mm 400 mm
MAX. TURNING DIA
345 mm 450 mm 330 mm 450 mm 330 mm
MAX. WORK LENGTH
750 mm 490/740/990 mm 480/730/980 mm
DRAW TUBE DIA
52 mm 75 mm 91 mm
CHUCK SIZE
8" 10" 12"
SPINDLE DRIVE MOTOR
9/11(main),5.5/7.5(sub) KW 15/18.5 KW (18.5/22KW opt.) 15/18.5 KW (18.5/22KW opt.)
SPINDLE SPEED RANGE
4800 rpm 4200 rpm 3200 rpm
SPINDLE NOSE
A2-6 ASA A2-8 ASA A2-8 ASA
THROUTH SPINDLE HOLE DIA
62 mm 90 mm 102 mm
FRONT BEARING DIA
100 mm 130 mm 140 mm
SPINDLE TAPER
1/20 1/20 1/20
MCS SUB SPINDLE SPEED
6000 rpm - -
MCS SUB SPINDLE NOSE
A2-5 ASA - -
MCS SUB SPINDLE TRAVEL
700 mm - -
MCS SUB MILLING SPEED
3800 rpm 3800 rpm 3800 rpm
X AXIS TRAVEL

225 mm

225 mm
225 mm
Z AXIS TRAVEL
770 mm 510/760/1010 mm 500/750/1000 mm
B AXIS TRAVEL
670 mm  -  -
X AXIS MOTOR
3.0 KW/3.8 HP 3.0 KW/3.8 HP 3.0 KW/3.8 HP
Z AXIS MOTOR
3.0 KW/3.8 HP 3.0 KW/3.8 HP 3.0 KW/3.8 HP
B AXIS MOTOR
3.0 KW/3.8 HP - -
X AXIS RAPID TRAVERSE
20 20 20
Z AXIS RAPID TRAVERSE

20

20

20
B AXIS RAPID TRAVERSE
20 - -
GUIDEWAYS
HARD RAIL HARD RAIL HARD RAIL
NO. OF TOOL STATIONS
12 12 12
SIZE OF EXTERNAL TURNING TOOL
25 mm 25 mm 25 mm
BORING BAR DIA
40 mm 40 mm 40 mm
QUILL DIA
90 mm 90 mm 90 mm
QUILL TRAVEL
120 mm 120 mm 120 mm
TAILSTOCK TRAVEL
810 mm 560/810/1060 mm 560/810/1060 mm
QUILL TAPER
MT#5 MT#5 MT#5
ELECTRICAL POWER SUPPLY
30 KVA 30 KVA 40 KVA
COOLANT TANK CAPACITY
150 Liter 150 Liter 150 Liter
COOLANT FLOW
20 L/min 20 L/min 20 L/min
TO TAL HEIGHT
1905 mm 1905 mm 1905 mm
FLOOR SPACE

4300 L

2100 W

3900/4300/4700 L

2100 W

3900/4300/4700 L

2100 W
NET WEIGHT
5300 kg 4800/5300/5800 kg 4900/5400/5900 kg

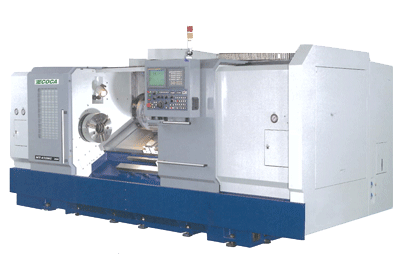

MT-412


X Travel :265 mm
Z Travel :770/1020/1520/2020/3000 mm
Spindle Speed : 3200 rpm
Spindle Motor : 18.5/22 KW (22/30KW opt.)
Guideways : Hard Rail

Download PDF Ask A Quote


Ecoca MT-412


MT Series

ITEM MT-412 MT-412MC MT-415 MT-415MC
SWING OVER BED
700 mm
OVER CROSS SLIDE
500 mm
MAX. TURNING DIA
510 mm 440 mm 510 mm 440 mm
MAX. WORK LENGTH
750 mm 1000 mm 1500 mm 2000 mm 2980 mm 730 mm 980 mm 1480 mm 1980 mm 2960 mm 720 mm 970 mm 1470 mm 1970 mm 2950 mm 700 mm 950 mm 1450 mm 1950 mm 2930 mm
DRAW TUBE DIA
91 mm 117.5 mm
CHUCK SIZE
12" 15"
SPINDLE DRIVE MOTOR
18.5/22 KW (22/30KW opt.)
SPINDLE SPEED RANGE
3200 rpm 2500 rpm
MILLING SPEED RANGE
- 3200 rpm - 3200 rpm
SPINDLE NOSE
A2-8 ASA A2-11 ASA
THROUTH SPINDLE HOLE DIA
102 mm 131 mm
FRONT BEARING DIA
140 mm 170 mm
SPINDLE TAPER
1/20
X AXIS TRAVEL

265 mm
Z AXIS TRAVEL
770/1020/1520/2020/3000 mm
X AXIS MOTOR
4.0 KW(5.3 HP)
Z AXIS MOTOR
4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP)
X AXIS RAPID TRAVERSE
20 m/min
Z AXIS RAPID TRAVERSE

20 (16m/min for Zaxis travel1500mm) m/min

(10m/min for Zaxis travel3000mm) m/min
GUIDEWAYS
HARD RAIL
NO. OF TOOL STATIONS
12
SIZE OF EXTERNAL TURNING TOOL
25 mm
BORING BAR DIA
40 (50 opt.)mm
QUILL DIA
100 mm
QUILL TRAVEL
120 mm
TAILSTOCK TRAVEL
600/850/1350/1850/2850 mm
QUILL TAPER
MT#5
ELECTRICAL POWER SUPPLY
40 KVA 50 KVA 40 KVA 50 KVA 40 KVA 50 KVA 40 KVA 50 KVA
COOLANT TANK CAPACITY
150 Liter 200 Liter 150 Liter 200 Liter 150 Liter 200 Liter 150 Liter 200 Liter
COOLANT FLOW
20 L/min
TO TAL HEIGHT
2000 mm 2350 mm 2000 mm 2350 mm 2000 mm 2350 mm 2000 mm 2350 mm
FLOOR SPACE

3300/3900/4400/4900/6250 L

2248 W
NET WEIGHT
6400/7300/8100/9300/11800 kg


MT-415


X Travel :265 mm
Z Travel :770/1020/1520/2020/3000 mm
Spindle Speed : 2500 rpm
Spindle Motor : 18.5/22 KW (22/30KW opt.)
Guideways : Hard Rail

Download PDF Ask A Quote


Ecoca MT-415


MT Series

ITEM MT-412 MT-412MC MT-415 MT-415MC
SWING OVER BED
700 mm
OVER CROSS SLIDE
500 mm
MAX. TURNING DIA
510 mm 440 mm 510 mm 440 mm
MAX. WORK LENGTH
750 mm 1000 mm 1500 mm 2000 mm 2980 mm 730 mm 980 mm 1480 mm 1980 mm 2960 mm 720 mm 970 mm 1470 mm 1970 mm 2950 mm 700 mm 950 mm 1450 mm 1950 mm 2930 mm
DRAW TUBE DIA
91 mm 117.5 mm
CHUCK SIZE
12" 15"
SPINDLE DRIVE MOTOR
18.5/22 KW (22/30KW opt.)
SPINDLE SPEED RANGE
3200 rpm 2500 rpm
MILLING SPEED RANGE
- 3200 rpm - 3200 rpm
SPINDLE NOSE
A2-8 ASA A2-11 ASA
THROUTH SPINDLE HOLE DIA
102 mm 131 mm
FRONT BEARING DIA
140 mm 170 mm
SPINDLE TAPER
1/20
X AXIS TRAVEL

265 mm
Z AXIS TRAVEL
770/1020/1520/2020/3000 mm
X AXIS MOTOR
4.0 KW(5.3 HP)
Z AXIS MOTOR
4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP) 4.0 KW(5.3 HP) 6KW (8HP)
X AXIS RAPID TRAVERSE
20 m/min
Z AXIS RAPID TRAVERSE

20 (16m/min for Zaxis travel1500mm) m/min

(10m/min for Zaxis travel3000mm) m/min
GUIDEWAYS
HARD RAIL
NO. OF TOOL STATIONS
12
SIZE OF EXTERNAL TURNING TOOL
25 mm
BORING BAR DIA
40 (50 opt.)mm
QUILL DIA
100 mm
QUILL TRAVEL
120 mm
TAILSTOCK TRAVEL
600/850/1350/1850/2850 mm
QUILL TAPER
MT#5
ELECTRICAL POWER SUPPLY
40 KVA 50 KVA 40 KVA 50 KVA 40 KVA 50 KVA 40 KVA 50 KVA
COOLANT TANK CAPACITY
150 Liter 200 Liter 150 Liter 200 Liter 150 Liter 200 Liter 150 Liter 200 Liter
COOLANT FLOW
20 L/min
TO TAL HEIGHT
2000 mm 2350 mm 2000 mm 2350 mm 2000 mm 2350 mm 2000 mm 2350 mm
FLOOR SPACE

3300/3900/4400/4900/6250 L

2248 W
NET WEIGHT
6400/7300/8100/9300/11800 kg

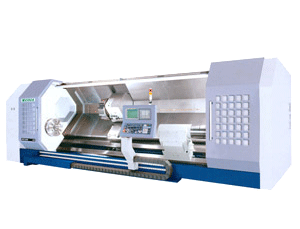

MT-520


X Travel :435 mm
Z Travel : 1100/2300/3200/4200 mm
Spindle Speed :124~496(L)/1500(H) rpm
Spindle Motor :40/6000i(flange type)
Guideways : Hard Rail

Download PDF Ask A Quote


Ecoca MT-520


MT Series

ITEM MT-518 MT-518MC MT-520 MT-520MC
SWING OVER BED
1000 mm 1000 mm
OVER CROSS SLIDE
650 mm 550 mm 650 mm 550 mm
MAX. TURNING DIA
700 mm 700 mm 700 mm 700 mm
MAX. WORK LENGTH
1000/2200/3200/4200 mm 1000/2200/3200/4200 mm
DRAW TUBE DIA
117 mm 117 mm
CHUCK SIZE
18" 20"
SPINDLE DRIVE MOTOR
30/6000i(flange type) 40/6000i(flange type)
SPINDLE MOTOR POWER
30/37 KW 37/45 KW
SPINDLE SPEED RANGE
95~496(L)/1800(H) rpm 124~496(L)/1500(H) rpm
MINE SPINDLE RANGE
- 3000 rpm - 3000 rpm
SPINDLE NOSE
A2-11 ASA A2-15 ASA
THROUTH SPINDLE HOLE DIA
135 mm 153 mm
FRONT BEARING DIA
200 mm 220 mm
SPINDLE TAPER
1/20 1/20
X AXIS TRAVEL

435 mm
435 mm
Z AXIS TRAVEL
1100/2300/3200/4200 mm 1100/2300/3200/4200 mm
X AXIS MOTOR
40/3000Bi(build-in brake) KW 40/3000Bi(build-in brake) KW
Z AXIS MOTOR
40/3000i KW 40/3000i KW
X AXIS RAPID TRAVERSE
15 m/min 15 m/min
Z AXIS RAPID TRAVERSE

10 m/min
10 m/min
GUIDEWAYS
HARD RAIL HARD RAIL
NO. OF TOOL STATIONS
12 VDI 12 12 VDI 12
SIZE OF EXTERNAL TURNING TOOL
32 mm 32 mm
BORING BAR DIA
60 (80 opt.)mm 60 (80 opt.)mm
QUILL DIA
235 mm 235 mm
QUILL TRAVEL
200 mm 200 mm
TAILSTOCK TRAVEL
880/1980/2980/3980 mm 880/1980/2980/3980 mm
QUILL TAPER
MT#6 MT#6
ELECTRICAL POWER SUPPLY
60 KVA 60 KVA
COOLANT TANK CAPACITY
450 Liter 450 Liter
COOLANT FLOW
22 L/min 22 L/min
TOTAL HEIGHT
3100 mm 3100 mm
FLOOR SPACE

4850/6020/7050/8100 L

2920 W
NET WEIGHT
8.2/13.8/16.5/18.7 Ton. 8.8/14.2/16.9/19.1 Ton. 8.9/14.5/17.2/19.5 Ton. 9.5/15.1/17.7/20.2 Ton.


MT-518


X Travel :435 mm
Z Travel : 1100/2300/3200/4200 mm
Spindle Speed :95~496(L)/1800(H) rpm
Spindle Motor :30/6000i(flange type)
Guideways : Hard Rail

Download PDF Ask A Quote


Ecoca MT-518


MT Series

ITEM MT-518 MT-518MC MT-520 MT-520MC
SWING OVER BED
1000 mm 1000 mm
OVER CROSS SLIDE
650 mm 550 mm 650 mm 550 mm
MAX. TURNING DIA
700 mm 700 mm 700 mm 700 mm
MAX. WORK LENGTH
1000/2200/3200/4200 mm 1000/2200/3200/4200 mm
DRAW TUBE DIA
117 mm 117 mm
CHUCK SIZE
18" 20"
SPINDLE DRIVE MOTOR
30/6000i(flange type) 40/6000i(flange type)
SPINDLE MOTOR POWER
30/37 KW 37/45 KW
SPINDLE SPEED RANGE
95~496(L)/1800(H) rpm 124~496(L)/1500(H) rpm
MINE SPINDLE RANGE
- 3000 rpm - 3000 rpm
SPINDLE NOSE
A2-11 ASA A2-15 ASA
THROUTH SPINDLE HOLE DIA
135 mm 153 mm
FRONT BEARING DIA
200 mm 220 mm
SPINDLE TAPER
1/20 1/20
X AXIS TRAVEL

435 mm
435 mm
Z AXIS TRAVEL
1100/2300/3200/4200 mm 1100/2300/3200/4200 mm
X AXIS MOTOR
40/3000Bi(build-in brake) KW 40/3000Bi(build-in brake) KW
Z AXIS MOTOR
40/3000i KW 40/3000i KW
X AXIS RAPID TRAVERSE
15 m/min 15 m/min
Z AXIS RAPID TRAVERSE

10 m/min
10 m/min
GUIDEWAYS
HARD RAIL HARD RAIL
NO. OF TOOL STATIONS
12 VDI 12 12 VDI 12
SIZE OF EXTERNAL TURNING TOOL
32 mm 32 mm
BORING BAR DIA
60 (80 opt.)mm 60 (80 opt.)mm
QUILL DIA
235 mm 235 mm
QUILL TRAVEL
200 mm 200 mm
TAILSTOCK TRAVEL
880/1980/2980/3980 mm 880/1980/2980/3980 mm
QUILL TAPER
MT#6 MT#6
ELECTRICAL POWER SUPPLY
60 KVA 60 KVA
COOLANT TANK CAPACITY
450 Liter 450 Liter
COOLANT FLOW
22 L/min 22 L/min
TOTAL HEIGHT
3100 mm 3100 mm
FLOOR SPACE

4850/6020/7050/8100 L

2920 W
NET WEIGHT
8.2/13.8/16.5/18.7 Ton. 8.8/14.2/16.9/19.1 Ton. 8.9/14.5/17.2/19.5 Ton. 9.5/15.1/17.7/20.2 Ton.
