X Travel : 1,400 mm
Y Travel : 600 mm
Z Travel : 600 mm
Spindle Taper : BT 40 / BT 50 with optional CAT or DIN.
Max
Spindle Speed : 8,000 RPM Belt Driven *
Spindle Motor : 15 HP (30 min.)
Tool Changer : 30-Tool Swing-Arm Tool Changer
Machine Weight 14,300 Lb.
|
|

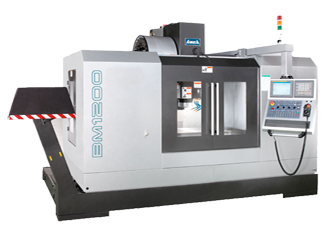

Packed with industry leading technology and top quality components, the AWEA BM series machining centers combine incredible power, strength, and speed to bring you The Ultimate Machining Power®. These powerful maximum performance machines will easily accomplish the demanding milling applications of today and tomorrow. Offering a wide range of models and many spindle configurations to suit your applications, the BM series offers 4 models BM 850/ BM 1020/ BM 1200/BM 1460 with 600 mm of Y-axis travel, BM 1400 / BM1600 / BM 1800 have 800 mm of Y-axis travel and BM2100 / BM 2500 have 1,000 mm of Y-axis travel. Furthermore, many features are standard that are not available or costly options found on competitor’s machines. Features such as extended Y-axis with 4 box ways, 20 drum ATC ( BM 850 ~ BM 1460) , 16 drum ATC ( BM 1,400 ~ 2,500 ), spindle oil chiller, rigid tapping, and high-speed controls are standard plus many more. |
BM Series
| Models |
BM-
850 |
BM-
1020 |
BM-
1200 |
BM-
1460 |
BM-
1400 |
BM-
1600 |
BM-
1800 |
BM-
2100 |
BM-
2500 |
Spindle
taper |
BT 40 / BT 50 *1 |
BT 50 *1 |
X-axis
travel |
850
mm |
1,020 mm |
1,200 mm |
1,400 mm |
1,400 mm |
1,600 mm |
1,800 mm |
2,100 mm |
2500 mm |
Y-axis
travel |
600 mm |
800 mm |
1,000 mm |
Z-axis
travel |
600
mm |
700
mm |
800
mm |
1,000
mm |
| * 1 : Optional CAT or DIN. |
|
